Comprehensive Guide to Stop Collars in Oil & Gas Cementing Operations

In the intricate world of oil and gas drilling, ensuring the integrity and stability of the wellbore is paramount. Among the various tools employed to achieve this, stop collars play a crucial role in maintaining the position of casing accessories, such as centralizers and cement baskets, during the cementing process. This comprehensive guide delves into the types, functions, and selection criteria of stop collars, providing valuable insights for professionals in the field.

What are Stop Collars?

Stop collars are mechanical devices installed on casing strings to prevent the axial movement of casing accessories. By securing centralizers and other tools in place, stop collars ensure optimal spacing between the casing and the wellbore, facilitating effective cement placement and zonal isolation. Their application is critical in achieving a successful primary cementing operation, which is fundamental to the structural integrity of the well.

Importance of Stop Collars in Cementing Operations

• Centralizer Positioning: Stop collars maintain the position of centralizers, ensuring the casing remains centered within the wellbore.
• Enhanced Cement Bonding: Proper placement of centralizers, secured by stop collars, promotes uniform cement distribution, leading to better bonding and zonal isolation.
• Prevention of Tool Movement: They prevent the upward or downward movement of casing accessories during casing running and cementing, reducing the risk of equipment failure.
• Adaptability: Stop collars are designed to accommodate various casing sizes and wellbore conditions, making them versatile tools in drilling operations.

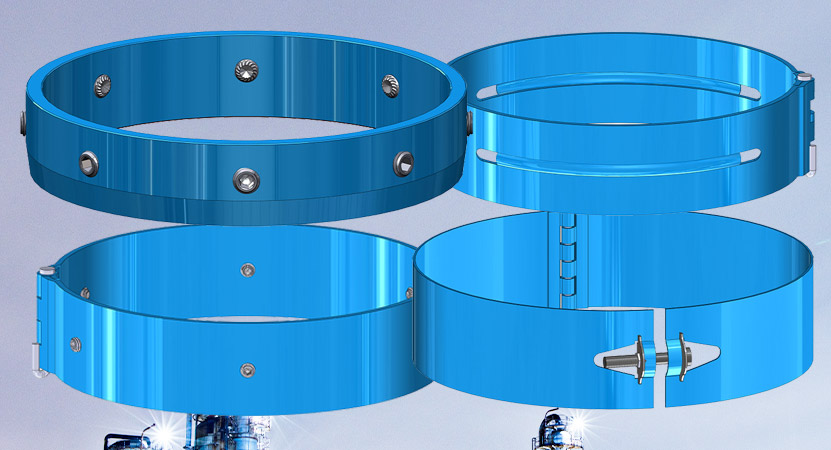

Types of Stop Collars

Slip-On Set Screw Stop Collar: This type is a single-piece collar that slides onto the casing and is secured using set screws. It is ideal for applications where high axial loads are expected and where annular clearance is limited. The slip-on design allows for easy installation, and the set screws provide a strong grip on the casing.

Features:

• High holding strength due to multiple set screws.
• Suitable for high-load applications.
• Easy installation by sliding onto the casing.
• Available in various materials, including ductile iron and stainless steel.

Hinged Bolted Stop Collar: Comprising two hinged halves secured by bolts, this collar is designed for quick installation without the need to slide over the casing end. It is especially useful in situations where the casing string is already assembled.

Features:

• Quick and easy installation.
• Suitable for larger casing sizes.
• Provides strong holding force with bolt tightening.
• Ideal for applications with limited access to casing ends.

Hinged Set Screw Stop Collar: Similar to the hinged bolted version, this collar uses set screws instead of bolts for securing. It offers a balance between ease of installation and holding strength, making it suitable for various wellbore conditions.

Features:

• Hinged design allows for easy placement on the casing.
• Set screws provide adjustable gripping force.
• Effective in low annular clearance situations.
• Available in sizes ranging from 4 ½” to 20″.

Hinged Spiral Nail Stop Collar: This collar employs spiral nails driven into the casing to secure the collar in place. The design ensures a robust grip, making it suitable for high-torque and high-load applications.

Features:

• Spiral nails offer strong anchoring to the casing.
• Hinged design facilitates easy installation.
• Ideal for applications requiring high holding force.
• Manufactured from high-tensile steel for durability.

Cable Wall Cleaner: While not a traditional stop collar, the cable wall cleaner serves a similar purpose by aiding in the removal of mud cake and debris from the wellbore wall. It enhances the effectiveness of cementing by ensuring a clean surface for cement bonding.

Features:

• Equipped with flexible cables to clean the wellbore wall.
• Improves cement adhesion by removing debris.
• Can be used in conjunction with stop collars and centralizers.
• Available in various sizes to match casing dimensions.

Wire Scratcher: Similar to the cable wall cleaner, the wire scratcher is designed to remove mud cake from the wellbore wall. It consists of wire bristles that scrape the wall as the casing is run into the hole, promoting better cement bonding.

Features:

• Wire bristles effectively clean the wellbore wall.
• Enhances cement bonding by removing mud cake.
• Simple design allows for easy installation.
• Can be used in various wellbore conditions.

Selection Criteria for Stop Collars

When choosing the appropriate stop collar for a specific application, consider the following factors:

• Casing Size and Weight: Ensure the collar is compatible with the casing dimensions and can withstand the associated loads.
• Wellbore Conditions: Assess the annular clearance, temperature, and pressure conditions to select a collar that can perform effectively.
• Installation Requirements: Determine whether the collar needs to be installed on assembled casing strings or can be slipped on from the end.
• Holding Strength: Evaluate the axial loads expected during operations to choose a collar with sufficient holding capacity.
• Material Compatibility: Select collars made from materials that are compatible with the casing and resistant to corrosion and wear.

Conclusion

Stop collars are essential components in oil and gas drilling operations, ensuring the proper placement and stability of casing accessories during cementing. By understanding the various types of stop collars and their specific applications, drilling professionals can make informed decisions to enhance well integrity and operational efficiency. Selecting the right stop collar involves careful consideration of wellbore conditions, casing specifications, and operational requirements. With the appropriate choice, stop collars contribute significantly to the success of cementing operations and the overall safety of drilling activities.
